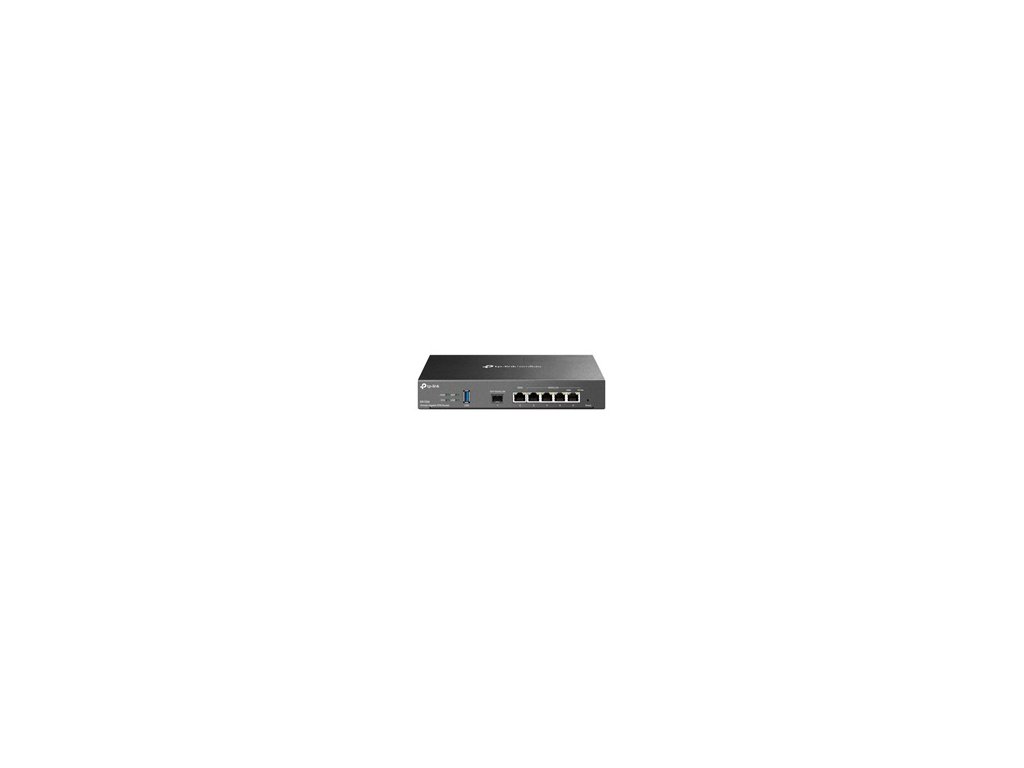

TP-Link ER7206 OMADA VPN router (1xSFP LAN/WAN,1xGbEWAN,4xGbELAN,USB3.0)
Kód: 43861114 DNÍ NA VRÁCENÍ
bez udání důvodu
Detailní popis produktu
TP-Link ER7206
Gigabitový VPN router Omada
- Integrováno do platformy Omada SDN - Funkce ZTP (Zero-Touch Provisioning), centralizovaná cloudová správa a inteligentní monitorování.
- Centralizovaná správa - Cloudový přístup a aplikace Omada pro maximální pohodlí a snadnou správu.
- Gigabitové porty - 1 gigabitový port SFP a 5 gigabitových portů RJ45 poskytují vysokorychlostní kabelové připojení.
- Až 5 portů WAN - 1 gigabitový SFP WAN port a až 4 gigabitové RJ45 WAN porty optimalizují využití šířky pásma.
- VPN s vysokým zabezpečením - Podporuje několik VPN protokolů včetně SSL / Wireguard / OpenVPN/ IPSec / GRE VPN§/ PPTP/ L2TP/ L2TP over IPSec, které pomáhají uživatelům flexibilněji sestavit VPN připojení
- Mnoho funkcí zabezpečení - Pokročilé zásady firewallu, ochrana proti útokům DoS, filtrování adres IP/MAC/URL a další bezpečnostní funkce na ochranu vaší sítě a dat.
Stránky produktu: https://www.tp-link.com/cz/business-networking/vpn-router/er7206/
Technické specifikace
SECURITY | |
Access Control | Source/Destination IP Based Access Control |
Filtering | • WEB Group Filtering§
• URL Filtering • Web Security§ |
ARP Inspection | • Sending GARP Packets§
• ARP Scanning§ • IP-MAC Binding |
Attack Defense | • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
HARDWARE FEATURES | |
Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP |
Interface | • 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports • 1 USB 3.0 Port (supports USB LTE dongle and USB storage) |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
Fan Quantity | Fanless |
Button | Reset Button |
Power Supply | 12V DC/ 1A Power Adapter |
PoE Budget | - |
Flash | 128 MB NAND |
DRAM | 512 MB DDR4 |
LED | PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
Protection | 4 kV surge protection |
Enclosure | Steel |
Mounting | Desktop/ Wall-Mounting |
Max Power Consumption | • 7.5 W (with USB 3.0 connected)
• 4.5 W (without USB 3.0 connected) |
PERFORMANCE | |
IPS Throughput | TCP: 229 Mbps;
UDP: 188 Mbps |
DPI Throughput | TCP: 933 Mbps;
UDP: 927 Mbps |
WireGuard VPN | 341.3 Mbps |
Concurrent Session | 150,000 |
New Sessions /Second | 5,300 |
NAT (Static IP) | 945.3 Mbps / 940.5 Mbps |
NAT(DHCP) | 939.6 Mbps / 940.9 Mbps |
NAT(PPPoE) | 943.6 Mbps / 940.9 Mbps |
NAT (L2TP) | 880.1 Mbps / 859.0 Mbps |
NAT (PPTP) | 855.0 Mbps / 907.2 Mbps |
64 Byte Packet Forwarding Rate | - |
IPsec VPN Throughput | • ESP-SHA1-AES256: 617.1 Mbps
• ESP-SHA256-AES256: 592.8 Mbps • ESP-SHA384-AES256: 592.4 Mbps • ESP-SHA512-AES256: 604.5 Mbps |
OpenVPN | 139.1 Mbps |
L2TP VPN Throughput | • Unencrypted: 977.4 Mbps
• Encrypted: 334.6 Mbps |
PPTP VPN Throughput | • Unencrypted: 1064.1 Mbps
• Encrypted: 206.8 Mbps |
SSL VPN Throughput | 131.6 Mbps |
66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,488 pps |
1,518 Byte Packet forwarding rate | 81,279 pps / 81,275 pps |
BASIC FUNCTIONS | |
WAN Connection Type | • Static IP
• Dynamic IP • PPPoE(supports MRU Configuration) • PPTP • L2TP |
MAC Clone | Modify WAN/LAN MAC Address† |
DHCP | • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
IPv6 | StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode |
VLAN | 802.1Q VLAN |
IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
ADVANCED FUNCTIONS | |
ACL | IP/Port/Protocol/Domain Name Filtering |
Advanced Routing | • Static Routing
• Policy Routing • RIP§ • OSPF§ |
Bandwidth Control | IP-based Bandwidth Control |
Load Balance | • Intelligent Load Balance
• Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection |
NAT | • One-to-One NAT
• Multi-Net NAT • Port Forwarding • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
Session Limit | IP-based Session Limit |
VPN | |
SSL VPN | 50 Tunnels |
IPsec VPN | • 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
PPTP VPN | • PPTP VPN Server
• PPTP VPN Client (10)‡ • 50 Tunnels • PPTP with MPPE Encryption |
L2TP VPN | • L2TP VPN Server
• L2TP VPN Client (10)‡ • 50 Tunnels • L2TP over IPSec |
OpenVPN | • OpenVPN Server
• OpenVPN Client (5)‡ • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
AUTHENTICATION | |
Web Authentication | • No Authentication
• Simple Password* • Hotspot(Local User /Voucher*/ SMS*/Radius*) • External Radius Sever • External Portal Sever* • LDAP§ |
MANAGEMENT | |
Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
Maintenance | • Web Management Interface
• Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
Management Features | • Automatic Device Discovery
• Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents | • ER7206(TL-ER7206)
• Power Cord • Quick Installation Guide |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux |
Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
