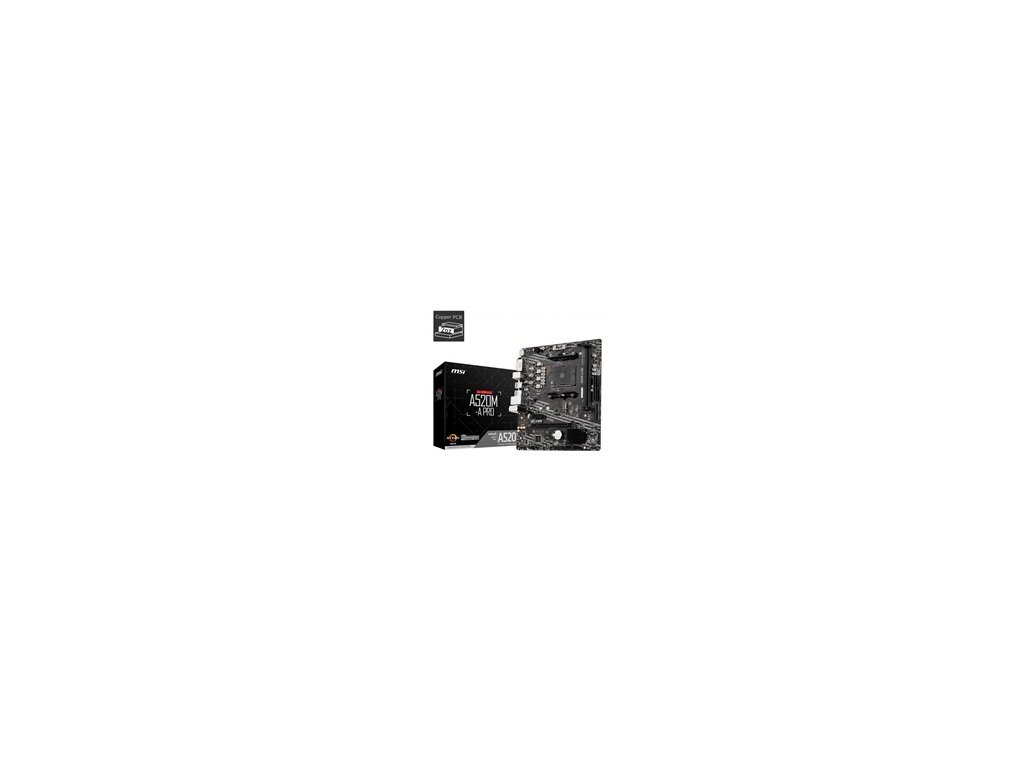

    MSI MB Sc AM4 A520M-A PRO, AMD A520, 2xDDR4, m-ATX

    Kód: 2647974
    Značka: MSI
    MSI MB Sc AM4 A520M-A PRO, AMD A520, 2xDDR4, m-ATX
    1 234 Kč
    Vyprodáno
    Položka byla vyprodána…

    Detailní informace

    14 dní na vrácení
    14 DNÍ NA VRÁCENÍ
    bez udání důvodu

    Detailní popis produktu

    A520M-A PRO

    • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
    • Supports DDR4 Memory, up to 4600(OC) MHz
    • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
    • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
    • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
    • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
    • Audio Boost: Reward your ears with studio grade sound quality
    • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

    TECHNICAL SPECIFICATIONS

    Socket AM4
    CPU Support Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
    Chipset AMD A520 Chipset
    Memory
    • 2x DDR4 memory slots, support up to 64GB 1
      - Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
      - Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
      - 1DPC 1R max speed 4600 MHz
      - 1DPC 2R max speed 3866 MHz
    • Dual channel memory architecture
    • Supports non-ECC UDIMM memory
    • Supports ECC UDIMM memory (non-ECC mode)
    • Supports un-buffered memory
    Expansion Slot
    • 1x PCIe x16 slot
    • 1x PCIe 3.0 x1 slots
    Onboard Graphics
    • 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
    • 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
    • Maximum shared memory of 16 GB
    Storage

    AMD A520 Chipset

    • 4x SATA 6Gb/s ports
    • 1x M.2 slot (Key M) (from AMD Processor)
      - Supports PCIe 3.0
      - Supports SATA 6Gb/s
      - Supports 2242/ 2260/ 2280 storage devices
    RAID
    • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
    USB

    AMD A520 Chipset

    • 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
    • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

    AMD Processor

    • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
    AUDIO

    Realtek ALC892 Codec

    • 7.1-Channel High Definition Audio
    LAN
    • 1x Realtek RTL8111H Gigabit LAN controller
    Internal Connectors
    • 1x 24-pin ATX main power connector
    • 1x 4-pin ATX 12V power connector
    • 4x SATA 6Gb/s connectors
    • 1x M.2 slots (M-Key)
    • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1x 4-pin CPU fan connector
    • 1x 4-pin system fan connectors
    • 1x Front panel audio connector
    • 2x System panel connectors
    • 1x Chassis Intrusion connector
    • 1xTPM module connector
    • 1x Clear CMOS jumper
    Back Panel Ports
    • LAN port
    • HDMI
    • DVI-D
    • Keyboard / Mouse
    • USB 3.2 Gen 1 5Gbps Type-A
    • USB 3.2 Gen 1 5Gbps Type-A
    • USB 2.0 Ports
    • Audio Connectors
    Dimensions
    • M-ATX Form Factor
    • 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
    Mounting
    • 8 mounting holes
    Box Content
    • A520M-A Pro
    • Quick Installation Guide
    • MSI Case Badge
    • 2x SATA Cables
    • Product Registration Card
    • I/O Shielding
    • Driver DVD
    Form Factor m-ATX
    Operating System Support for Windows 10 64-bit

    Doplňkové parametry

    Kategorie: Základní desky
    Záruka: 36 měsíců
    Hmotnost: 0.75 kg
